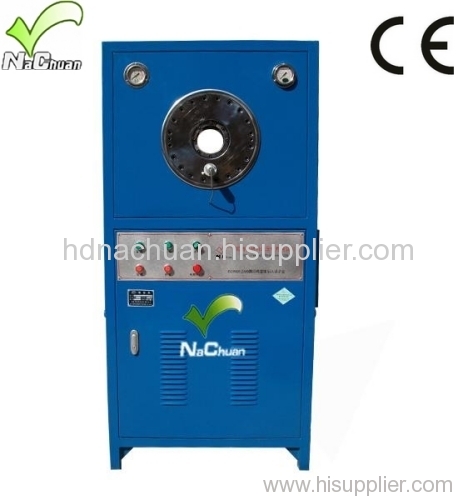

NCKY-250B-Z-G is the improvement enhancement molding machine of 250B-Z-20,the prominent feature is the strong crmping force and large opening range.After lengthen the size of die ,it can crimp four-layer wire spiral hose which inside diameter is 32mm,38mm,51mm at one-time.It also can gave the metal iron hose which thickness less than 9mm and with outside diameter less than 85mm a one-time shrink to the size required.

Application:engineering machinery,coal mine,and green house project.

TECHNICAL SPECIFICATION

NCKY-250B-Z-G

Swaging range : φ6mm--φ51mm--φ64mm(¼''~2''~2½'')

Supplied standard dies:10

Maximum: φ64IV

Die size :104*66

Opening with die:+21.5mm

Swaging force :458 T(4580KN)

Swaging peed:360 crimping per hour

Systematic pressure:31.5MPa

Motor :4KW

Voltage:380V-3-50HZ

Weight :298 Kg

Volume :740*450*1550mm
