Product Detail

Model No.: NCKY-300AS-Z-16

Packing: wooden carton

Brand Name: NACHUAN

Means of Transport: marine

Delivery Date: 7 days

Crimping range : 6mm--64mm 4SP
Supplied die sets:11
Crimping force :600T (6000KN)
Die size :116*120
Dovetail connected dies

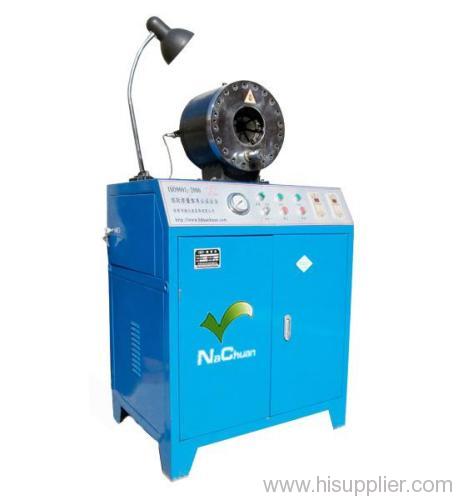

This machine is full automatic hose crimper and our independent design on the basis of the traditional model .With nice shape,compact structure it can provides customers the most convenience operation experence

TECHNICAL SPECIFICATION

NCKY-300AS-Z-16

Crimping range : φ6mm--φ64mm(¼''~2 ½'')

Supplied die sets:11

Die size :116*120

Opening with die:+40mm

Crimping force :600 T(6000KN)

Crimping speed:200 crimping per hour

Systematic pressure:31.5MPa

Motor Power :4KW

Remark: Annex φ32, φ38, φ51, φ64 extended dies can for users to purchase, we can also provide custmized dies for the users special needs on the performance conditions, these dies are charged accordingly
